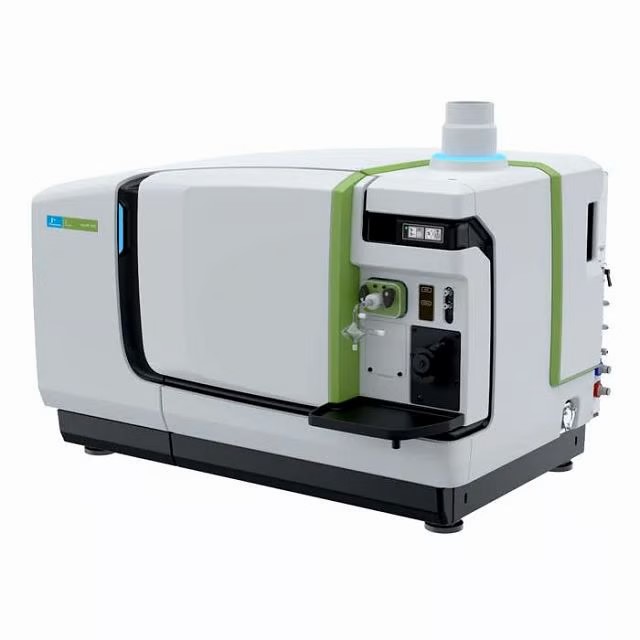

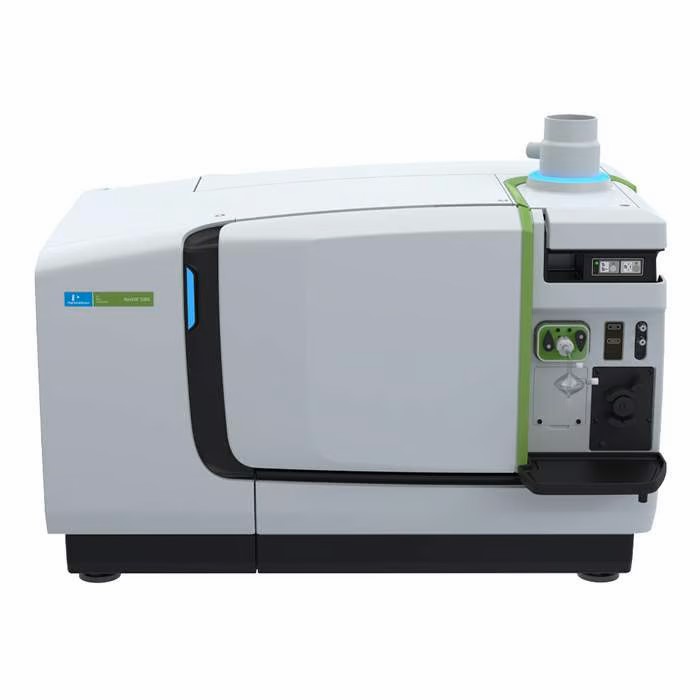

NexION 5000 Multi-Quadrupole ICP Mass Spectrometer

The NexION® 5000 is PerkinElmer’s most advanced ICP-MS system, designed for ultra-trace elemental analysis. Featuring a true four-quadrupole (4Q) configuration, it delivers unmatched interference removal, precision, and stability.

产品描述

The first in its category to boast four quads, the NexION® 5000 multi-quadrupole ICP-MS is innovatively designed to meet and exceed the demanding requirements of ultra-trace elemental applications. It delivers exceptionally low background equivalent concentrations and outstanding detection limits, key to ensuring accurate, repeatable results. Plus, it provides superior interference removal, phenomenal stability and unmatched matrix tolerance, for results you can count on.

产品参数

The NexION 5000 multi-quadrupole ICP-MS is available in two configurations:

  • The NexION 5000 Non-Cleanroom ICP-MS (N8160009) is highly recommended for applications which do not require the use of a cleanroom, but which still benefit from the unmatched sensitivity and interference removal capabilities of the NexION 5000 series.
  • The NexION 5000 Cleanroom ICP-MS (N8160010) is designed specifically for those requiring the highest level of cleanliness and the lowest background equivalent concentrations (<1 ppt, even in hot plasma).
Both models feature a host of new and proprietary technologies that deliver outstanding detection limits, astounding accuracy, excellent repeatability and the long-term stability required by your applications:

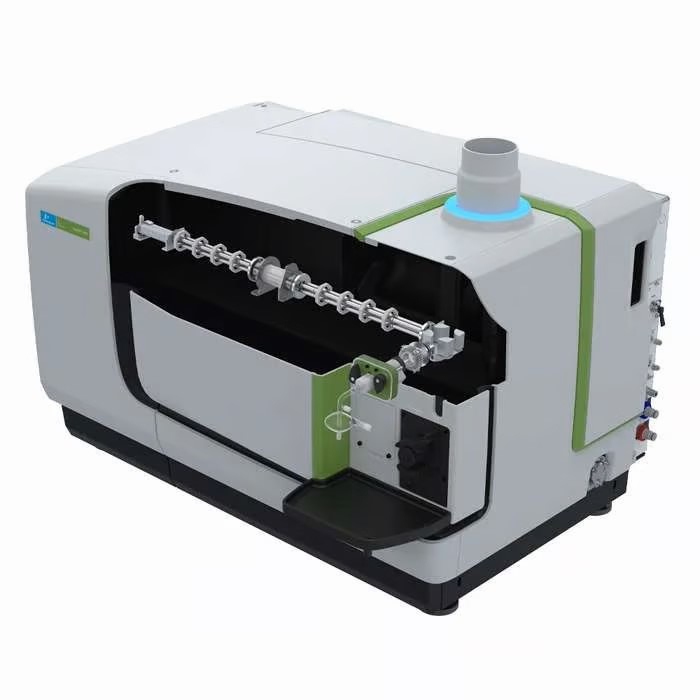

  • Four quadrupoles:
    • First: Quadrupole Ion Deflector (Q0) directs ions to the entrance of the first mass filter
    • Second: Transmission Analyzer Quadrupole 1 (Q1, full-sized for <0.7 amu mass resolution), acts as a mass filter or as an ion guide to direct ions to the Quadrupole Universal Cell
    • Third: Quadrupole Universal Cell (Q2), empowered by dynamic bandpass tuning, prevents side reactions with residual reaction gases in the cell
    • Fourth: Transmission Analyzer Quadrupole 2 (Q3, full-sized for <0.7 amu mass resolution), acts as a mass filter or as an ion guide to direct ions to the detector
  • Extended Dynamic Range (EDR) increases linear dynamic range to 1014, allowing the accurate analysis of both high- and low-concentration analytes in a single analytical run, resulting in fewer re-runs
  • Low maintenance for greater uptime:
    • Triple Cone Interface with patent-pending OmniRing combined with Quadrupole Ion Deflector deliver no maintenance beyond cones, for continual operation and improved stability
    • 34 MHz free-running RF generator offers trouble-free user experience - the plasma is generated by the unique LumiCoil RF load coil, which is air cooled (does not require water or gas cooling), so maintenance-free, eliminating need to replace plasma load coils
  • External status lighting provides easy visibility of state of analysis, optimizing efficiencies
  • Syngistix for ICP-MS software (v. 3.0 or higher) brings together the power of the triple-quad ion optics with automated startup, optimization, batch analysis and shutdown, user-friendly workflows, and more in a contemporary user interface
  • NexION 5000 Cleanroom ICP-MS is also certified to be able to be upgraded to meet SEMI S2/S8 (emergency button) for integration in cleanroom facilities
